JM Slow Speed Winch
- This series winch mainly used for the installation or disassembly of large and oversize concrete construction and steel structure.
- This structural feature is that wire rope able to orderly arrangement, lifting is safe and reliable.
- It is suitable for bridge port, road, bridge engineering and large mine engineering equipment's installation.
Type & Configuration

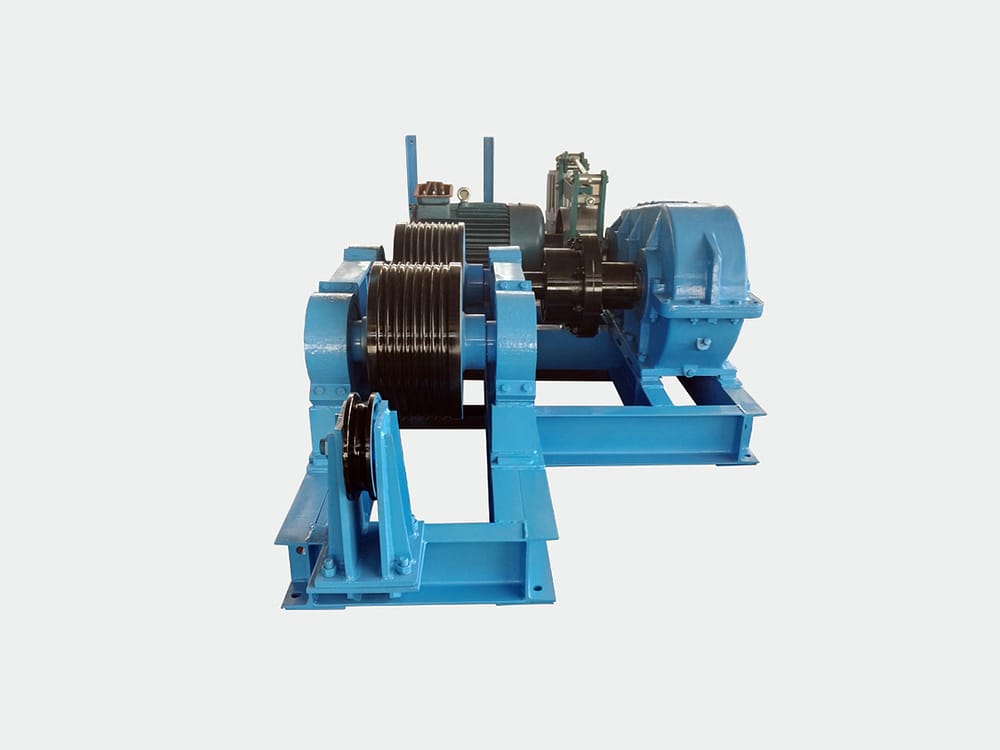

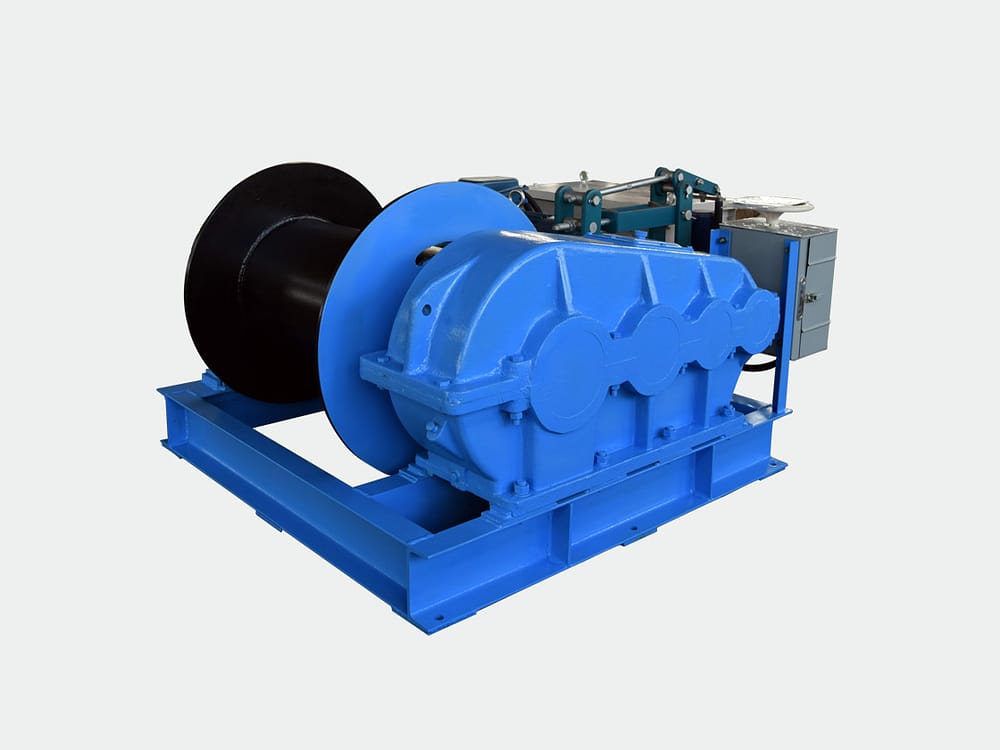

JM5T Winch

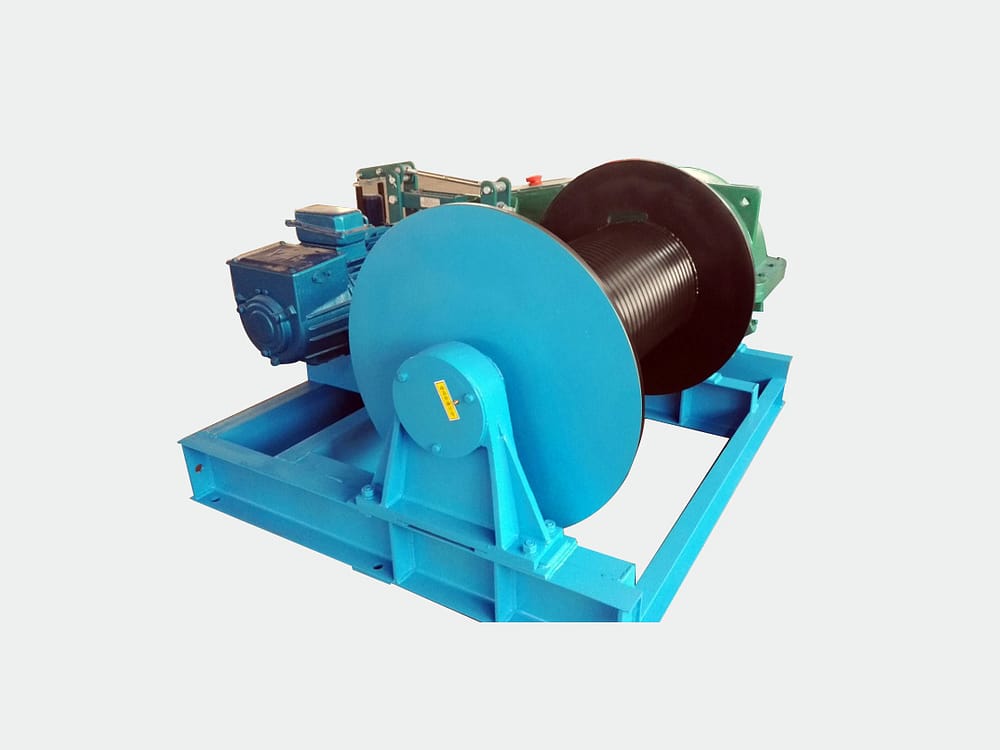

JM6T Winch
JM10T Winch
| Type | Load KN | Speed m/min | Rope Capacity m | Rope Dia | Motor Type | Motor Power KW | Reducer | Self Weight KG |
|---|---|---|---|---|---|---|---|---|
| JM1 | 10 | 15 | 80 | 9 | Y112M-6 | 2.2 | ZQ250 | 270 |
| JM1.6 | 16 | 16 | 115 | 12.5 | Y132M-6 | 5.5 | ZQ350 | 500 |
| JM2 | 20 | 16 | 100 | 12.5 | Y160M-6 | 7.5 | ZQ350 | 550 |
| JM3.2 | 32 | 9.5 | 150 | 15.5 | Y160M-6 | 7.5 | ZQS470 | 700 |
| JM5 | 50 | 9.5 | 240 | 21.5 | YZR160L-6 | 11 | ZQS670 | 1100 |
| JM6 | 60 | 9.5 | 200 | 24 | YZR180L-6 | 15 | ZQS670 | 1300 |
| JM8 | 80 | 8 | 250 | 26 | YZR180L-5 | 15 | ZQS740 | 2000 |
| JM10 | 100 | 8 | 200 | 30 | YZR200L-6 | 22 | ZQS790 | 2200 |
JK Fast Speed Winch
- This series winch mainly used for materials lifting and traction the heavy goods during construction.
- It also used for crane as main hoist; it is the special winch of derrick and gantry frame and lifting trolley.
- Suitable for construction and small equipment installation of construction mine lifting factory.
Type & Configuration

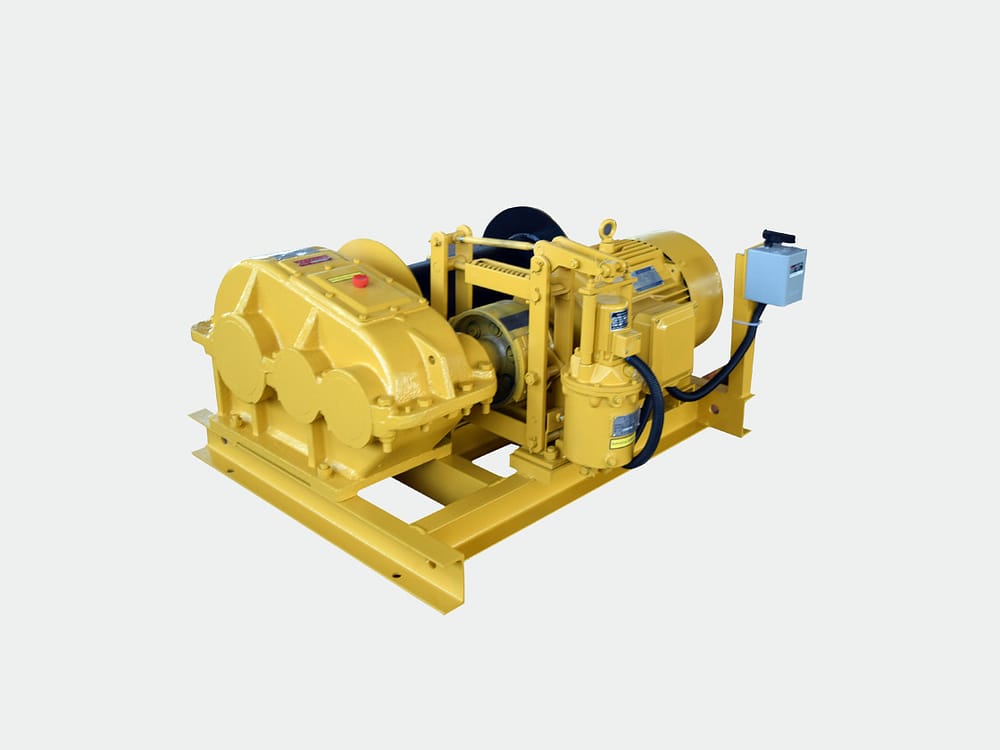

JK2T Winch

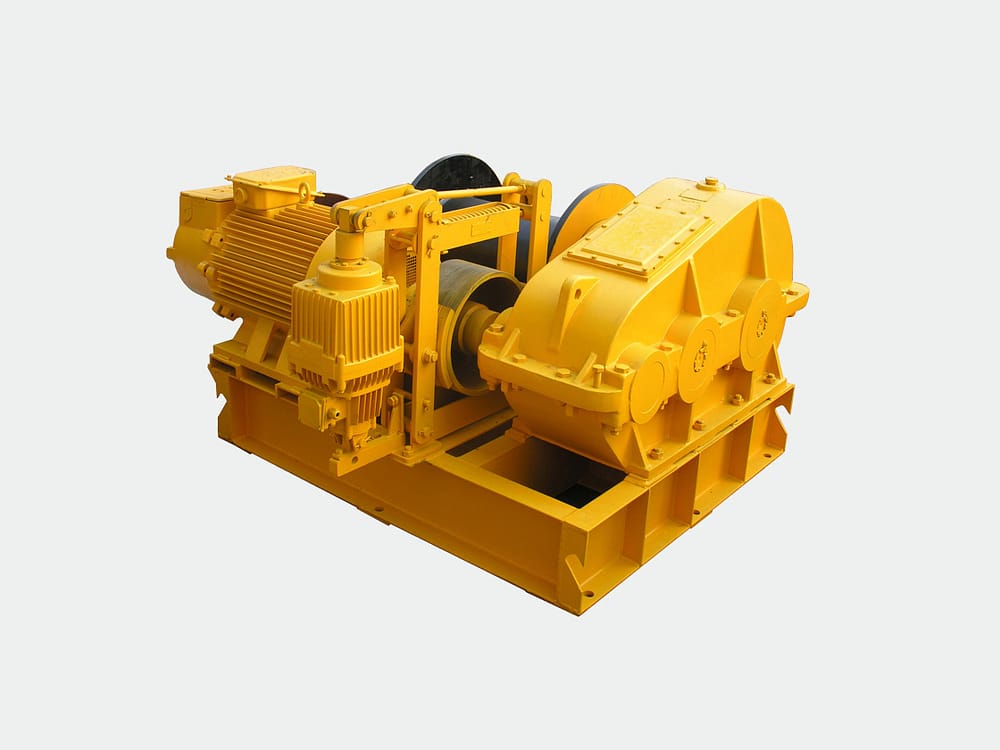

JK5T Winch

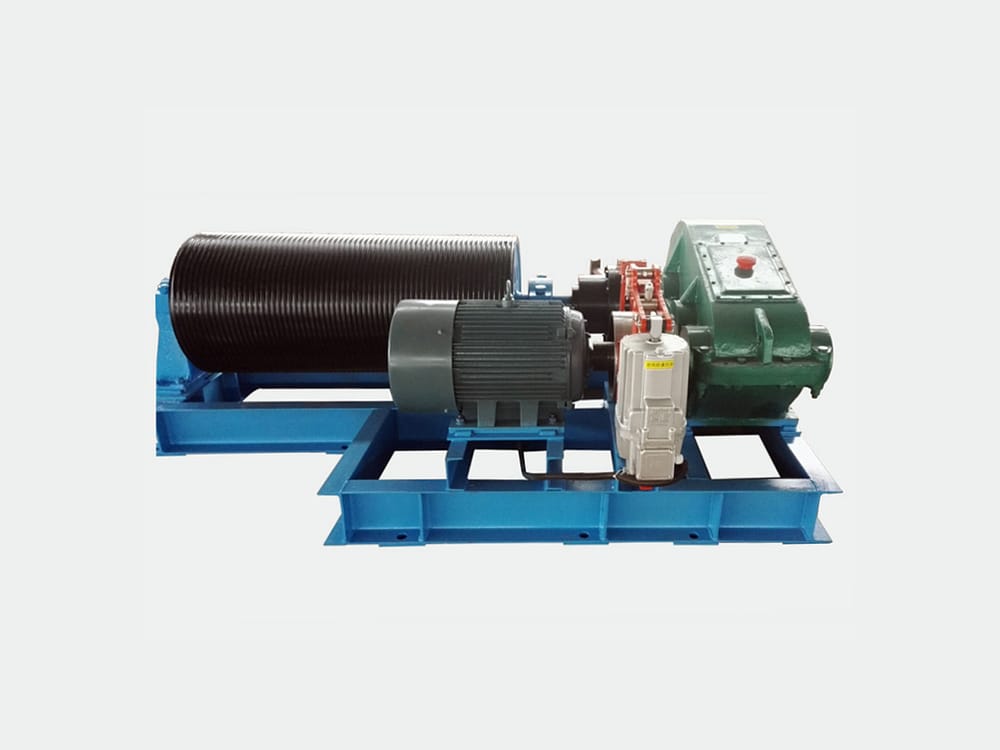

JK8T Winch
| Type | Load KN | Speed m/min | Rope Capacity m | Rope Dia | Motor Type | Motor Power KW | Reducer | Self Weight KG |
|---|---|---|---|---|---|---|---|---|
| JK0.5 | 5 | 22 | 110 | 7.5 | Y100L2-4 | 3 | ZQ250 | 200 |
| JK1 | 10 | 22 | 80 | 9.3 | Y112M-4 | 4 | ZQ350 | 300 |
| JK1.6 | 16 | 24 | 115 | 12.5 | Y132S-4 | 5.5 | ZQ350 | 500 |
| JK2 | 20 | 24 | 110 | 12.5 | Y132M-4 | 7.5 | ZQ350 | 550 |
| JK3.2 | 32 | 30 | 250 | 15.5 | YZR180L-6 | 15 | ZQ400 | 1150 |
| JK5 | 50 | 30 | 240 | 21.5 | YZR225M-6 | 30 | ZQ650 | 2500 |
| JK8 | 80 | 30 | 210 | 26 | YZR280S-8 | 45 | ZQ750 | 3500 |
| JK10 | 100 | 30 | 300 | 30 | YZR315S-8 | 55 | ZQ850 | 5100 |

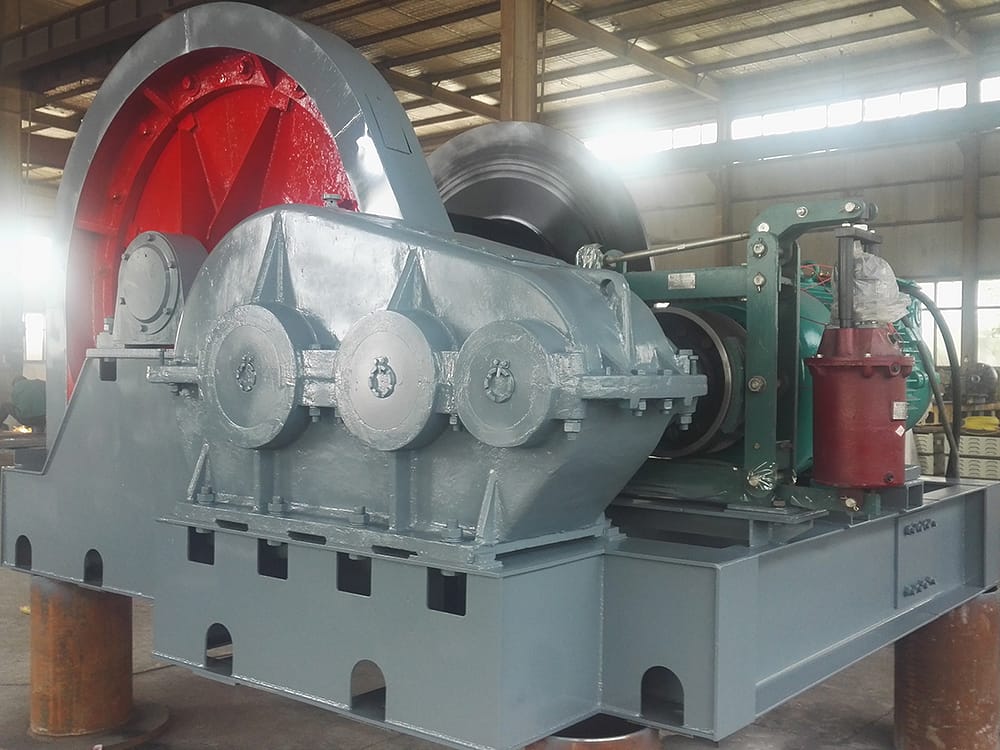

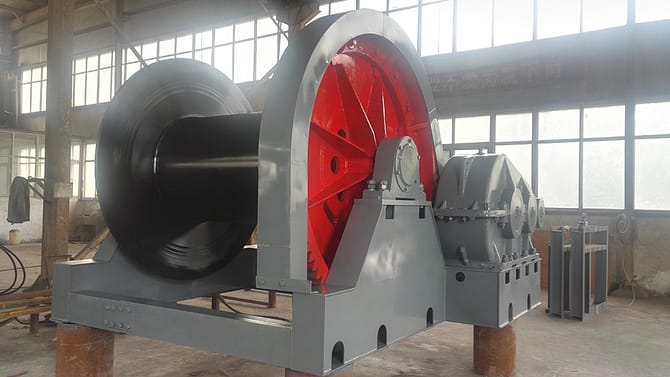

Large Capacity Winch

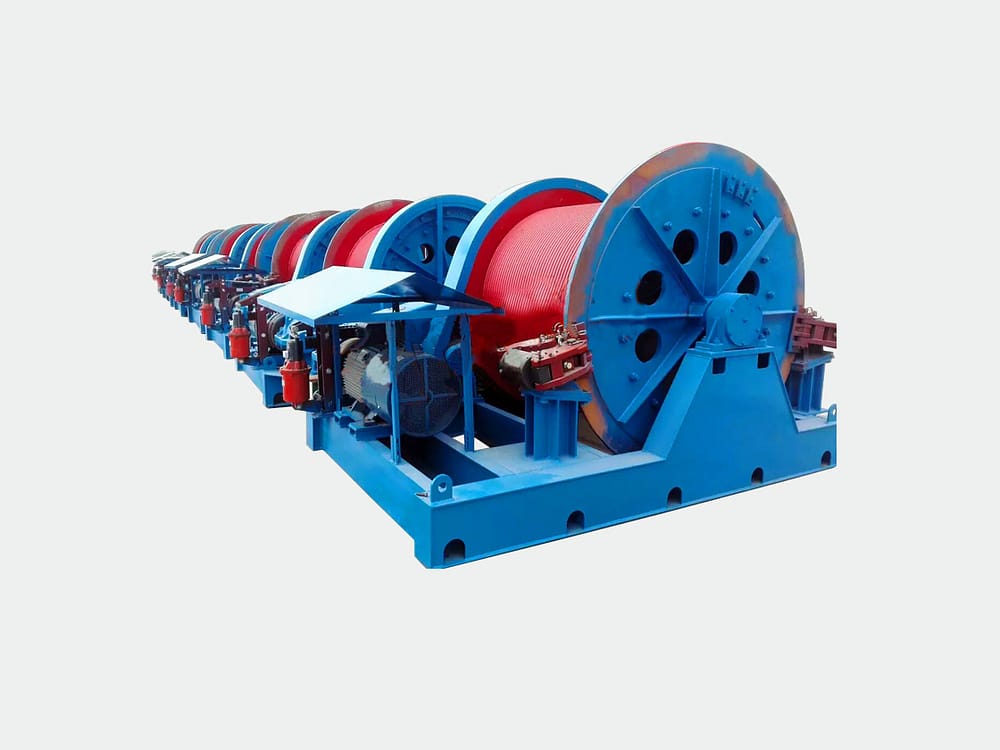

JM25T Winch

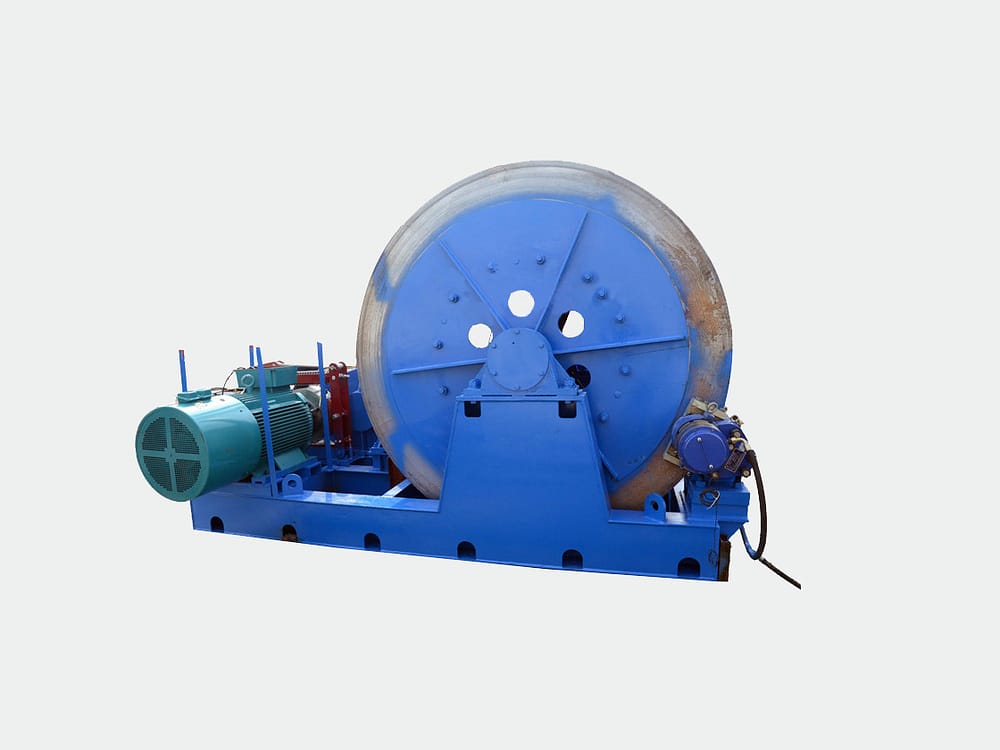

JM30T Winch
JM40T Winch
| Type | Load KN |
Speed m/min |
Rope Capacity m |
Rope Dia | Motor Type | Motor Power KW |
Size mm | Self Weight KG |
|---|---|---|---|---|---|---|---|---|
| JM10 | 100 | 8 | 200 | ф30 | YZR200L-6 | 22 | 2280*1500*950 | 3800 |
| JM12.5 | 125 | 10 | 300 | ф34 | YZR225M-6 | 30 | 2880*2200*1550 | 5000 |
| JM16 | 160 | 10 | 500 | ф37 | YZR250M-8 | 37 | 3750*2400*1850 | 8800 |
| JM20 | 200 | 10 | 600 | ф43 | YZR280M-8 | 45 | 3950*2560*1950 | 9900 |
| JM25 | 250 | 9 | 700 | ф48 | YZR280M-8 | 55 | 4350*2800*2030 | 13500 |
| JM32 | 320 | 9 | 700 | ф52 | YZR315S-8 | 75 | 4500*2850*2100 | 20000 |
| JM50 | 500 | 8 | 800 | ф60 | YZR315M-8 | 90 | 4930*3050*2250 | 38000 |
| JM65 | 650 | 10 | 2400 | ф64 | LA8315-8AB | 160 | 5900*4680*3200 | 46000 |
QPQ Winch for Water Resources and Hydro-power Engineering

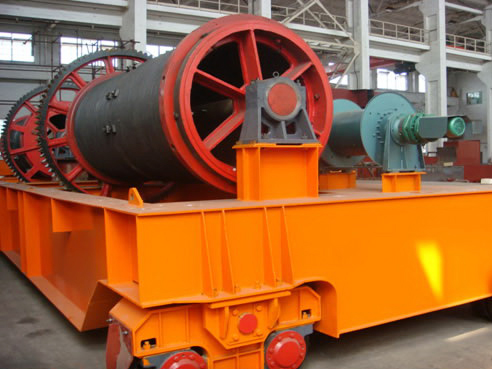

QPQ40T Winch
QPQ80T Winch
QPQ125T Winch
| Type | Type | Hoist Capacity KN |
Hoist Height m | Hoist Speed m/min |
Motor | Self Weight,KG |
|
|---|---|---|---|---|---|---|---|
| Type | Power KW | ||||||
| Single Lift Point(Single Drive) | QPQ-60 | 60 | 8 | 2.20 | Y112M-6 | 2.2 | 720 |
| QPQ-100 | 100 | 8 | 2.14 | Y132M1-6 | 4 | 1050 | |
| QPQ-160 | 160 | 8 | 2.25 | Y132M2-6 | 5.5 | 1780 | |
| QPQ-250 | 250 | 9 | 2.13 | Y160M-6 | 7.5 | 2560 | |
| QPQ-400 | 400 | 9 | 1.85 | Y160L-6 | 11 | 4060 | |
| QPQ-630 | 630 | 10 | 1.56 | Y180L-6 | 15 | 6135 | |
| Double Lift Point(Centralized Drive) | QPQ-2×60 | 2×60 | 8 | 2.14 | Y132M1-6 | 4 | 1470 |
| QPQ-2×160 | 2×160 | 8 | 2.3 | Y160L-6 | 11 | 3590 | |
| QPQ-2×400 | 2×400 | 9 | 1.38 | Y200L2-6 | 22 | 8170 | |
| Double Lift Point(Single Drive) | QPQ-2×630 | 2×630 | 10 | 1.56 | Y180L-6 | 2×15 | 12270 |
| QPQ-2×800 | 2×800 | 10 | 1.5 | Y200L2-6 | 2×22 | 15600 | |
| QPQ-2×1250 | 2×1250 | 12 | 1.19 | Y280S-8 | 2×37 | 24620 | |
Non-Standard Winch

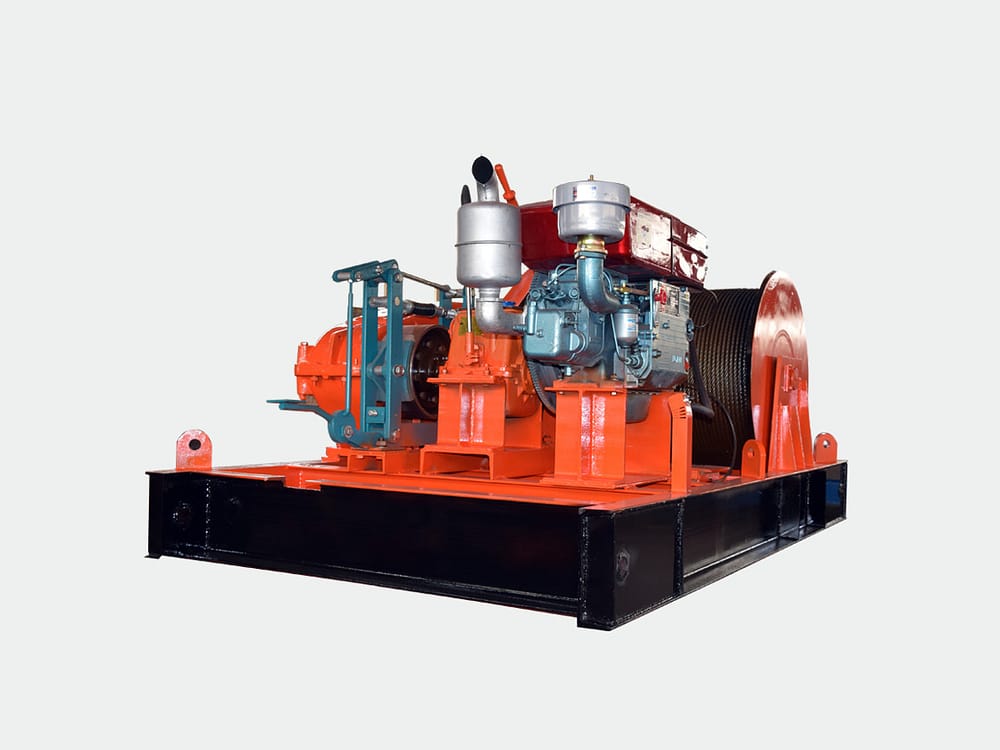

JMC Diesel Winch

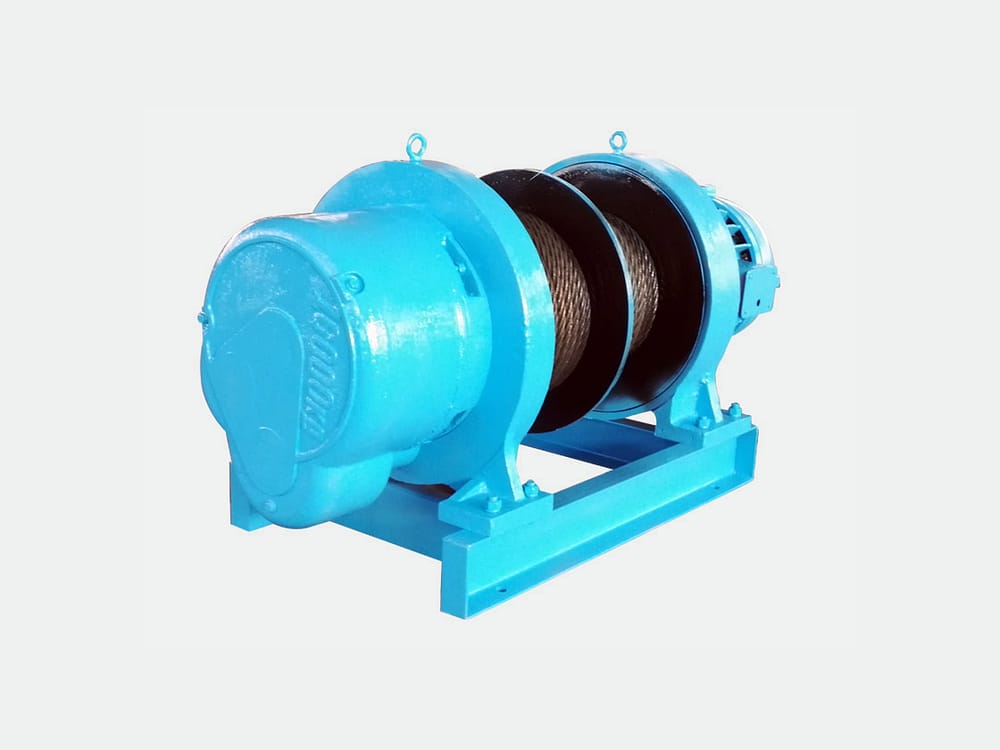

JMY One Word Winch
Different Customized Winch
Heavy Capacity Winch

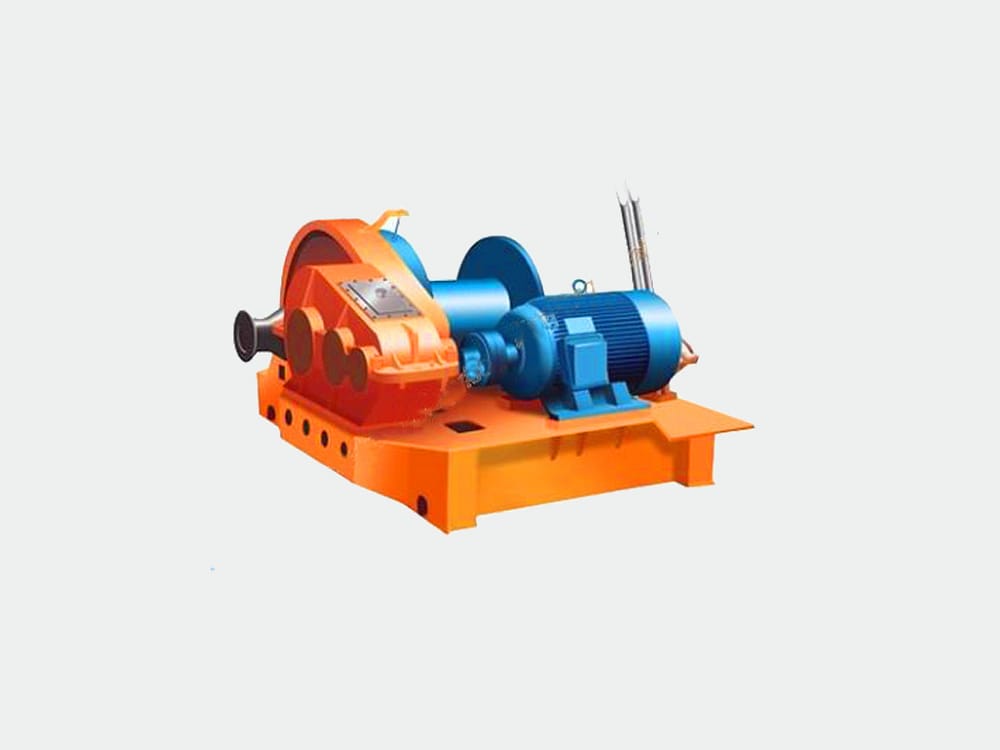

JML Winch
