Product Introduction
Gantry Crane are also known as Portal crane or Goliath crane. Include single girder gantry crane, double girder gantry crane, engineer gantry crane, semi gantry crane, and operate on floor mounted rails.
Dafang provide single girder gantry crane solutions from 1 Ton SWL up to 20 Ton SWL (we also manufacture gantry crane designed according to client special requirement).

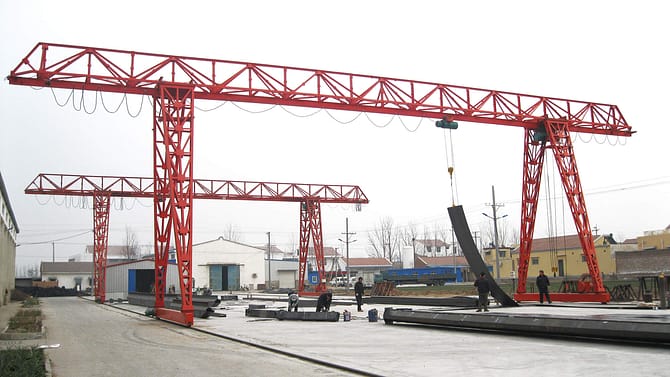

According to different situations, single girder gantry crane have three type: L single girder gantry crane, MH single girder gantry crane, truss type single girder gantry crane.
Single girder gantry crane custom-engineered lifting solutions can be designed with two side cantilever, one side cantilever or no cantilever.
Application:
Single girder gantry crane is mainly used in steel stock yard, mine, the concrete industry, warehouse, factory, harbor and ship building, etc.
Features
- Gantry cranes are more quickly and easily for installed and disassembled, it is ideal choice for use in a rented factory or in multiple work place
- Outdoor using, including finishing coatings
- High reliability component
- Excellent operating performance
- Suited for general work
- Suit for both of outdoor and indoor
More Details
Main beam
Q235/Q345 carbon structural steel. Strong box type with standard deflection
Support leg
Q235/Q345 carbon structural steel. Strong box type with two coats of paint
Ground beam
Q235/Q345 carbon structural steel. With Nanjing brand motor
Electric wire rope hoist
CD1/MD1 Electric made by our own group, insulation class IP44 /IP55
Crane wheel
Vacuum casting by our group, intermedium quenching by top technique machinery
Crane motor
Special for crane use-made by Nanjing/Nanjing Special Motor Factory
Compare Products

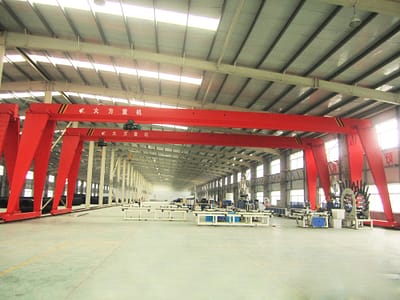

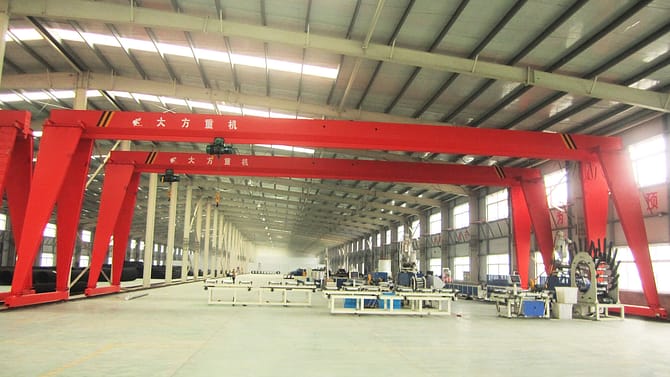

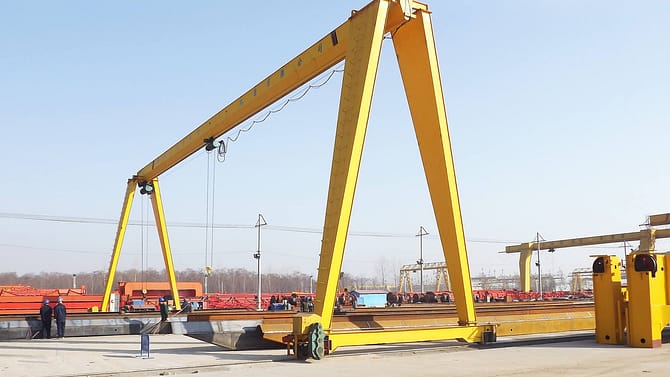

| A (MH) Type Single Girder Gantry Crane | Truss Type Single Girder Gantry Crane | L Type Single Girder Gantry Crane |
|---|---|---|
 |
 |
 |
|
|
|
Configuration
| Name | Lifting mechanism | Hoist traveling mechanism | Crane traveling mechanism |
|---|---|---|---|
| Motor | Nanjing (IP44,IP54) | Nanjing (IP44,IP54) | Nanjing (IP44,IP54) |
| Reducer | Dafang | Dafang | Dafang |
| Brake | Included in motor | Included in motor | Included in motor |
Client Care
You might be interested in the following questions
-
What information shall we offer to get precise quotation & best design?
- Capacity: __ton?
- Span length: __m?
Any canteliever do you need? Left cantilever: __m? Right cantilever: __m? - Lift height: __m? (hook center to ground)
- Traveling distance: __m? Do you need us provide rail and cable?
- Which material to lift?
Any special requirement on lifting speed, hosit traveling speed and crane traveling speed? - Work frequency: like how many times/day, hours/time?
So that we can confrim which type is more suit for your case: like double girder or single girder? - Woring condition: temperature? Any corrosive gas or material? Any explosive gas or material?
- Power supply: 220/380/400/440V, 50/60Hz, 3Ph?
-
Which type crane is the most suitable one for us?

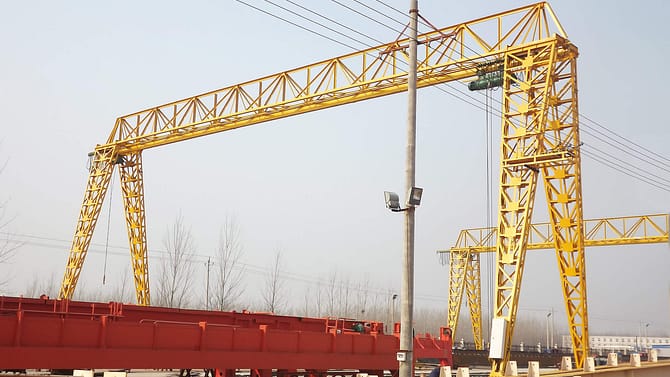

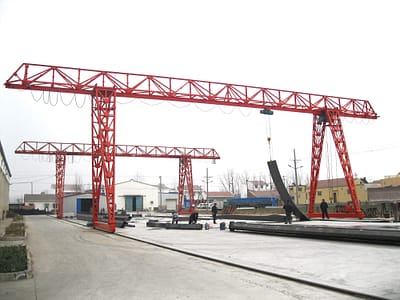

- If the crane is used in open area and wind is very strong, you'd better choose truss type gantry crane.

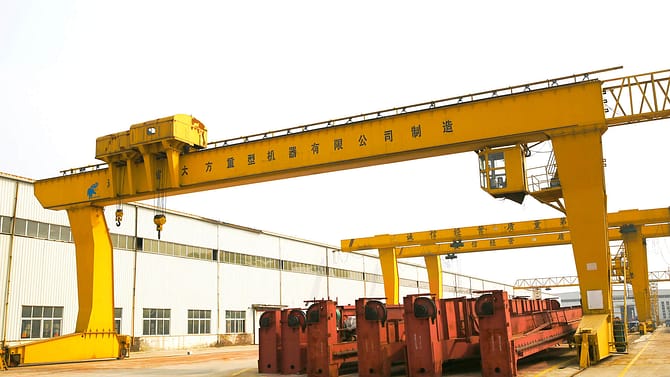

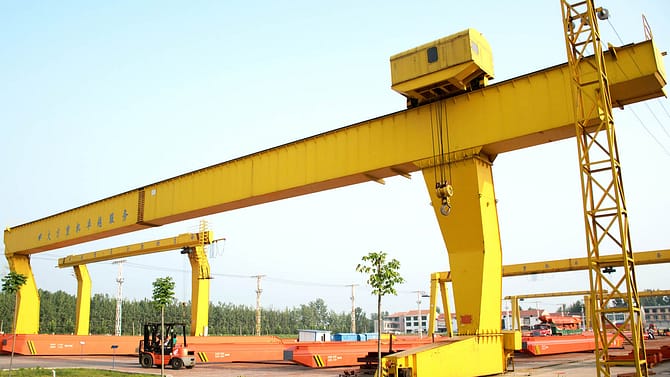

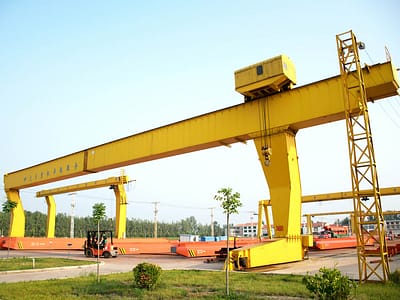

- If the goods size is very big, and crane have cantilever, you'd better choose L type gantry crane.
-
Under which condition we should to choose gantry crane?
- If crane is used in door, and the workshop haven't column, or you just rent one workshop, we suggest you choose gantry crane, it can be save the column cost and it is more convenience erect and disassembly.
- When the crane used outdoor, usually, gantry crane is more suitable.
-
If want to use gantry crane, but client finish the establishment, could client avoid break the ground to install gantry crane?
Yep, at once the ground's concrete width is more than 20cm, then there is no need to dig the ground. Just need pave belt steel plate, and fix it on the concrete floor with bolts. Then weld the rails is okay.
-
Whether you can offer the matched spare parts?
Yep, as crane manufacturer, we offer all the related spare parts, such as motor, hoists, drums, wheels, grabs, hooks, rails, travel beams, enclosed bus bar etc.
