Technical Parameter

1. Model: HD Model Single Girder Overhead Crane
2. Capacity: 5T
3. Span: 20.04
4. Lifting Height: 9.6m
5. Power Supply: 440V/50Hz/3PH
6. Lift Speed: 0.8/8 m/min
7. Hoist Travel Speed: 0-2/2-20 m/min
8. Crane Travel Speed: 0-2/2-20 m/min
9. Control Method: Remote Control
10. Quantity: 1 set
11. Including the bus bar and square rail

Detailed Informaiton

To day we export the crane to Sri Lanka. which is equipped soft power, Schneider electric elements, Schneider Inverter. The crane will be used to lift steel plate.rom the runway beam surface to the workshop's lowest point is 628mm. The space is limited. In order to meet customer demand of lifting height, we changed the crane structure and ensure the crane will traveling safety.

Besides, we assist our client to installation. Due to our client is lack of installation knowledge, we through the online way to guide installation. Including directly weld the Square rail on the runway beam, connect the end beam and the main beam with the high strength bolt, install the travel limit switch and electric control box on the crane, and debugging the traveling motor, ensure the motor turning consistency, Assemble the electric hoist on the main beam, install the whole crane on the rail, installation for the power supply and tighter, installation for current collector and so on.

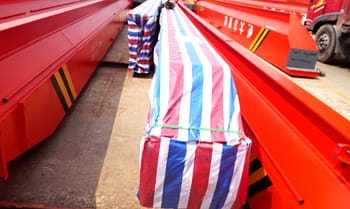

Packaging

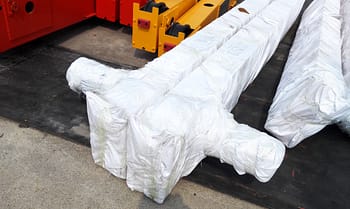

Packaging

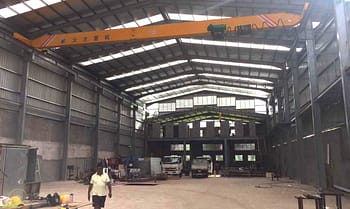

Installation
