10t Single Girder Overhead Crane
2017-10-20
Key Facts
1set
Technical Parameter
- Capacity :10t
- Span: 15.001m
- Lfit Height: 9.3m
- Lift Speed:7m/min
- Winch Travel Speed:20m/min
- Crane Travel Speed: 30m/min
- Voltage: 380V, 50HZ, 3AC
10t Single Girder Overhead Crane exported to philipines, this design is typical Chinese design with U shape main girder.
The production of this crane now is fully made by machines, can finish the production within one work, the production procedure is like following:
1500t pressure machine shape the main beam-weld the reinforcement steel plates-finish the main weld line with submerged weld machine-pre-assemble the main beam and end beam-quality department will measure all technical data.

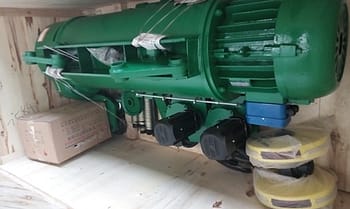

Electric Hoist
Hoist Travel Trolley

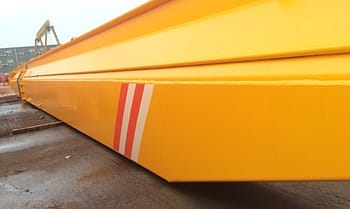

Main Beam

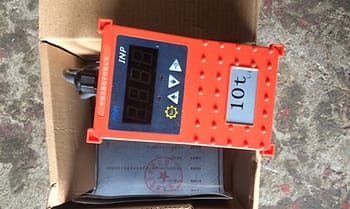

Overload Limit Switch

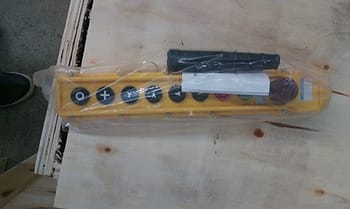

Pendent Push Button

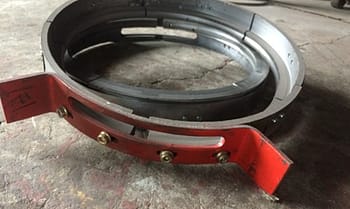

Rope Guider
