Product Introduction
Free Standing Jib Crane have the simple construction. It is include the column, revolving arm, transmission and electric hoist. It can improve work efficiency, improvement working condition.
Application:
Dafang jib cranes are highly adaptable, and fit well to various workshops and industries.
Features
- Save Space
- 360° Rotation
- Performance Free
- Unique Structure
- Flexible
- Safe and Reliable
More Details
Column
Electric Hoist
Stand Column-Heavy Jib Crane
Rotation Mechanism-Heavy Jib Crane
Slewing Bearing and Arm
Arm-Heavy Jib Crane
Related Products

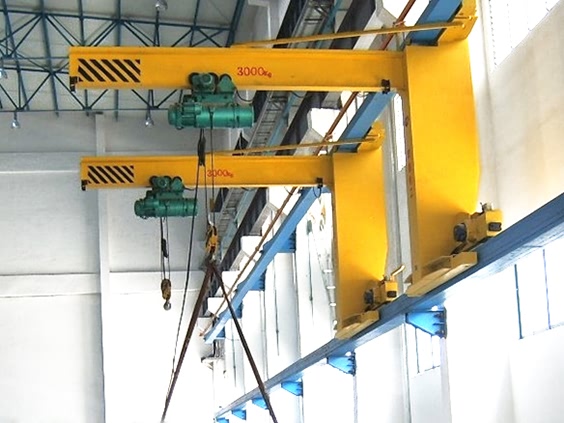

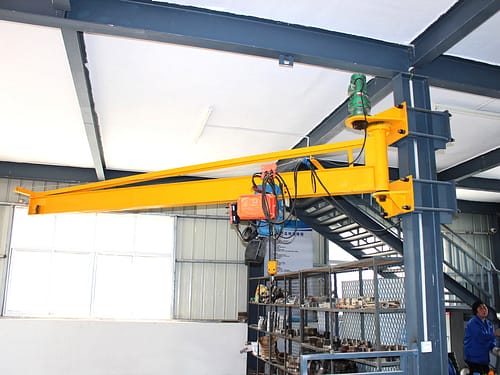

| Wall Mounted Jib Crane | Wall Traveling Jib Crane |
|---|---|
 |
 |
| Wall Mounted Jib Cranes require no floor space and no special foundations. They quickly fold out of the way of large overhead cranes. | Wall-Traveling Jib Cranes provide long lateral movement of materials without taking up floor space or interfering with large overhead cranes. Wall-traveling jibs increase overall plant productivity by quickly handling smaller lifts. |
Configuration
| Model | BZD0.25 | BZD0.5 | BZD1 | BZD2 | BZD3 | BZD5 | ||
|---|---|---|---|---|---|---|---|---|
| Lift Capacity | t | 0.25 | 0.5 | 1 | 2 | 3 | 5 | |
| Lifting Height | mm | 3000 | 3000 | 3000 | 3000 | 4000 | 4000 | |
| Maximum Turning Radius | mm | 3000 | 3000 | 3000 | 3000 | 4000 | 4000 | |
| Minimum Swing Radius | mm | 1100 | 1250 | 1300 | 1300 | 1200 | 1100 | |
| Rotation Angle | 360° | 360° | 360° | 360° | 360° | 360° | ||
| Lifting Speed | m/min | Normal Speed |
4,10,8 | 5,10,8 | 5,8 | 4,8 | 8 | 8 |
| Slow Speed |
1,2.5,0.8 | 1.25,2.5 | 1.25,2,0.8 | 1,0.8 | 0.8 | 0.8 | ||
| Height of contour H | mm | 3650 | 3900 | 4100 | 4230 | 5500 | 5750 | |
| Overall width L | mm | 3340 | 3363 | 3400 | 3415 | 4450 | 4600 | |
| Traveling Speed | NormalSpeed | 14,20 | 14,20 | 14,20 | 14,20 | 20 | 20 | |
| Rotating Speed | m/min | 0.7 | 0.7 | 0.7 | 0.7 | 0.6 | 0.6 | |
| Weight | KG | 950 | 1100 | 1800 | 2100 | 3500 | 4500 | |
Client Care
You might be interested in the following questions
-
Whether you can offer customized Free Standing Jib Crane?
Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell all the needed information.
-
What's information shall we offer to get precise quotation & best design?
- Max lifting capacity: __ton?
- Working radius needed (the arm length): __m?
- Lifting height (hook center to ground): __m?
- Rotation angle: __degree.
- Power supply: 380V/50HZ/3Ph is ok?
- Working condition: which material to lift? Where will the jib crane be used: inside or outside?
- Any special requirement on lifting speed?
- Whether flammable and explosive gas?
- Will the crane be used by yourself?
-
What's the advantage of your product?
- Products for the outer packing all adopt code printer to print the product code and the company name, every batch of products will be found by number.
- All spare parts will be oiling before delivery.
