Product Introduction
Except general type domestic standard all kinds of crane, Dafang crane also product European type Overhead Crane and Gantry Crane, European type overhead crane are compact lifting machinery designed and manufacturing in strict accordance with FEM and DIN standard, which with advanced technology and beautiful design. It equipped with low headroom hoists/trolley and variable frequency drives on both hoist and trolley.
Compare with other traditional crane, the limit distance between hook and wall is the minimum, the net height is lowest, can maximum the lift height, practically increase the efficient work space. Due to cranes' light dead weight, and minimum wheel load, can largely reduce the workshop's cost.
Application:
Suitable for workshop and warehouse material handling, large parts precision assembly and other places. Especially largely used for Malaysia, Middle East Area.
Features
European series overhead crane with hook is a new generation crane, it has the following advantages:
- Light dead weight, light wheel load, small boundary dimensions, dependable performance, easy operation.
- Light wheel load and small boundary dimensions can reduce the cost of plant construction, save capitol in vestment of lighting, heating and so on.
- Using high-quality components can reduce failure rate and maintenance costs.
- On the other hand, the total installed power(power consumption), low consumption of total power can reduce the costs.
- All the weld line should have non-destructive test.
- All the raw material have to pass shot blasting.
More Details
European Wheel
Material 42CrMo, include wheel bearing, wheel, bearing box, and bearing.

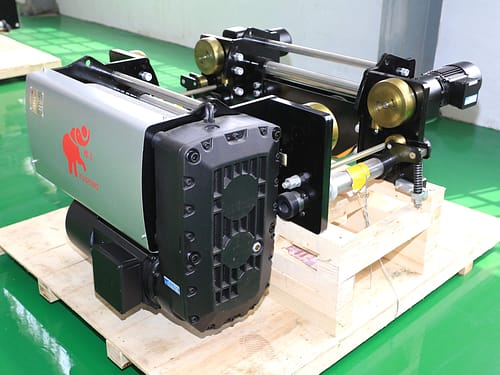

European Hoist
Standard lift speed is double speed, hoist travel and crane travel speed is variable. ABM brand.
European Hook
DIN or FEM standard. DG34CrMo; Compact structure; Save cost; High intensity.
Compare Products
| Main Girder | End Beam | Lifting Mechanism | |
|---|---|---|---|
| European type |
It has different structure, main girder is box type. Advantage is reduce itself height, to some extent increase the crane lifting height |

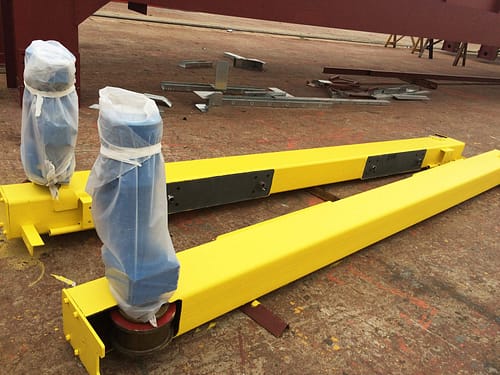

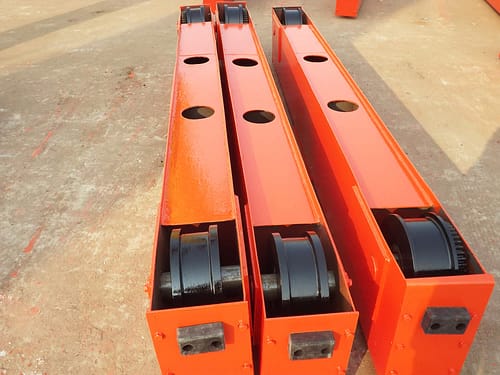

End beam is a tubular type, adopt good quality parts. Especially european wheel group is a key component of such parts. |
European Electric Hoist equipped with ABB Lifting motor, reducer,brake. |
| General type |
Main girder is normal type. |
General crane end beam by splicing |

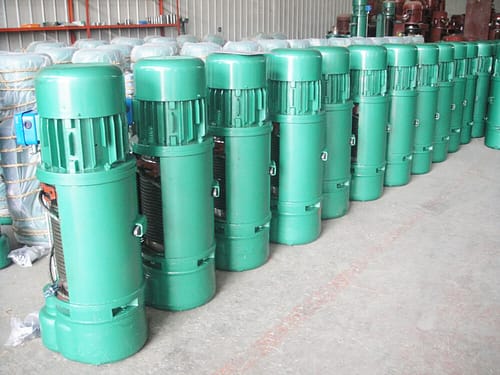

CD Electric Hoist |
Configuration
| NO | Item | Brand |
|---|---|---|
| 1 | Hoist Electrical | Schneider Brand |
| 2 | Motor（Hoist Lift） | ABM |
| Reducer（Hoist Lift） | ||
| Brake（Hoist Lift） | ||
| 3 | Motor（Hoist & Crane Travel） | SEW Three-In-One |
| Reducer（Hoist & Crane Travel） | ||
| Brake（Hoist & Crane Travel） | ||
| 4 | Inverter | Yaskawa Brand |
Client Care
You might be interested in the following questions
-
Whether you can offer European type crane?
Of course, we can offer it, also we could equipped the configuration by customers' request, like ABB motor, SEW reducer, Siemens motor, and so on.
-
Whether you can offer customized crane?
Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell all the needed information.
-
What information shall we offer to get precise quotation & best design?
- Span: ?
- Lift Height: ?
- Lift Capacity: ?
- Lift What: ?
- Indoor/outdoor ?
- Lift Speed: Single/Double/Variable?
- Travel Speed: Single/Double/Variable?
- Use Environment: Any explosive, combustible air? Temperature?
- Workshop practical situation? Drawing.
- Use frequency? How many hours/day? How many times/hour?
-
As for overhead crane, if the height from runway beam's surface to workshop's lowest point is too low, what special design can make?
- Different connection of main beam and end beam can reduce the height;
- Different crane design can shorten crane's self height.
-
Whether you can offer the matched spare parts?
Yep, as crane manufacturer, we offer all the related spare parts, such as motor, hoists, drums, wheels, grabs, hooks, rails, travel beams, enclosed bus bar etc.
