European Gantry Cranes

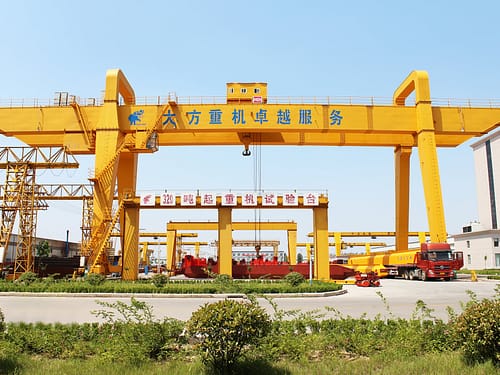

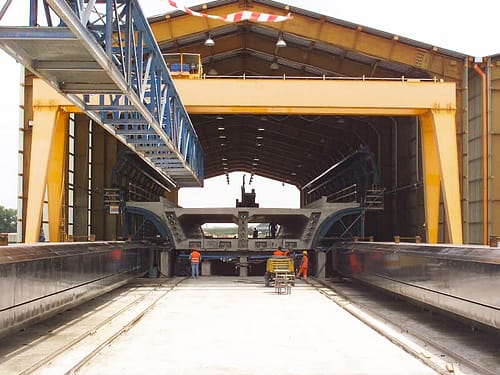

Gantry Crane are also known as Portal crane or Goliath crane. Include single girder gantry crane, double girder gantry crane, engineer gantry crane, European type gantry crane, and operate on floor mounted rails.

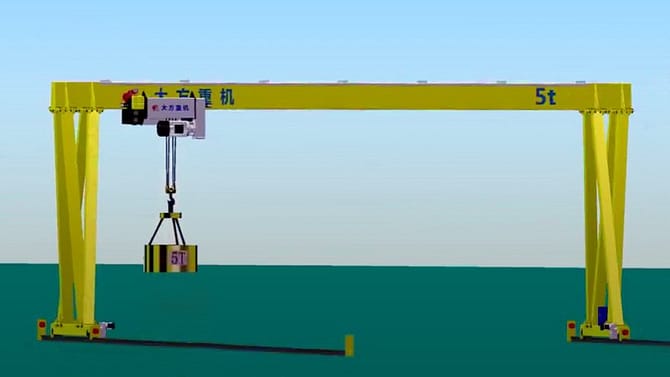

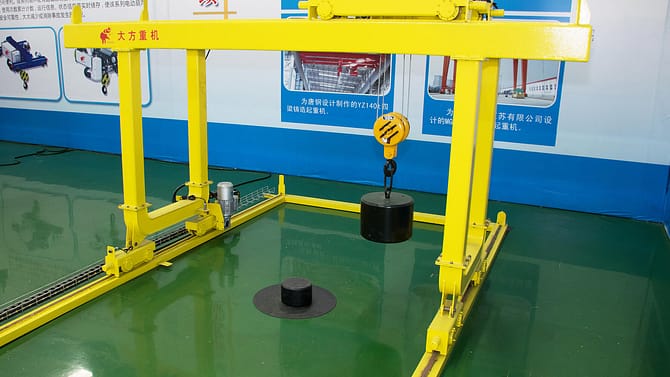

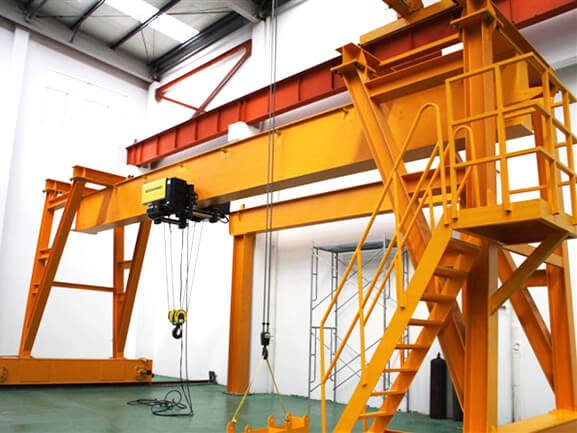

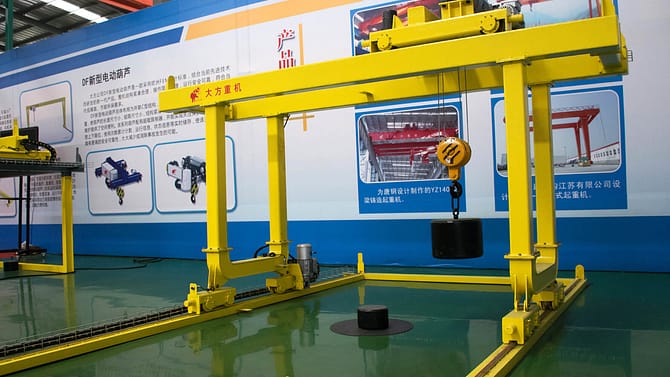

Dafang provide European type gantry crane solutions include single girder European type gantry crane and double girder European type gantry crane. Capacity from 1 Ton SWL up to 800 Ton SWL (we also manufacture gantry crane designed according to client special requirement).

Crane design according to FEM, DIN standard, with small limit size, high precision, low power consumption, light weight, low noise; modular design, more convenience for transportation and installation; crane equipped with frequency control, smooth operation and high efficiency.

Application:

European type gantry crane is mainly used in Steel, Forest Products, Intermodal, Biomass/Pellet, Concrete and many other industries.

Features

• Crane design according to FEM, DIN standard Equipped with all the necessary safety device
• Small limit size, light weight, modular design, more convenience for transportation and installation
• Using high-quality components can reduce failure rate and maintenance costs
• Crane equipped with frequency control, smooth operation and high efficiency

More Details

Crane motor

Crane travel motor equipped with SEW European type motor

Steel structure

Crane design according to FEM, DIN standard, with small limit size, high precision and light self weight

Electric equipments

For crane and winch power supply, usually we equipped Schneider, ABB, Siemens brand. Inverter equipped Yaskawa brand

Girder division

Make main girder divided into two or more parts, convenient for transport by container, and assemble with strong bolt

Wheel group

Wheel has compact structure, high assembly accuracy, smooth operation and low noise. Material for high strength 42 crmo Forgings

European type hoist

With compact structural heavy capacity and high work duty, equipped with frequency speed, smooth operation and high efficiency

Compare Products

European type gantry crane	General type gantry crane
European type crane compared with traditional crane, the difference is it has different structure, main girder is box type, and the advantage is reduce itself height, to some extent increase the crane's lifting height. End beam is a tubular type, and different from general crane end beam by splicing. And the main difference is that adopt good quality parts. Especially european wheel group is a key component of such parts. European wheel group has light weight, small volume, convenient installation, mainly consist of wheel shaft, wheel, bearing box, bearing four parts. Directly match with triad reducer, don't need to linked with coupling. So this kind of wheel has compact structure, high assembly accuracy, smooth operation and low noise. The wheels material for high strength 42 crmo forgings, with car axle interference fit, and the flat key links, wheel through modulation treatment, hardness of heat treatment HB300 – HB380. Car shaft for 42 crmo material, conditioning treatment after rough machining, heat treatment hardness for HB300.
